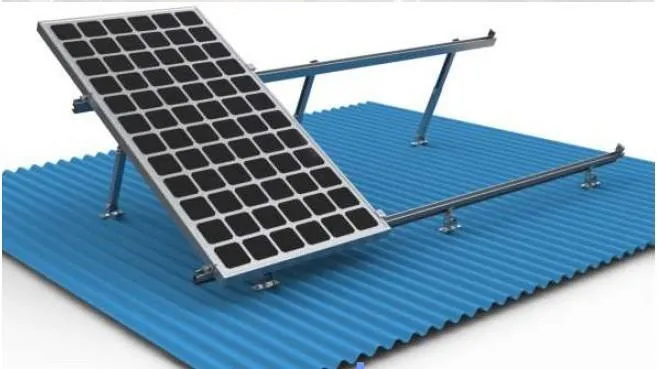

Adjustable Aluminum Racking System Solar Roof

Adjustable Aluminum Racking System Solar Roof

Hi,this is Brynn from Wanhos solar which is a China solar mounting system manufacturer/ exporter.Roof racking system is developed to mount the module tilt a certain angle on a flat roof or matel roof.You can have the adjustable angle solution as 10-15deg,15-30deg and 30-60deg according to your exact requirement.Series product have the innovated aluminum rail,D-module,clamps and legs which can be pre-assembly to make teh installation easy and quick for saving your labor cost and time .

Product Details

easy installation solar system



easy installation solar system

 Adjustable aluminum racking system solar roof

 Introduce



Flat roof racking system is developed to mount the moudule tilt a certain angle on a flat roof or ground. You can have the fixed or adjustable angle soluion as 10-15deg,15-30deg and 30-60deg according to your exact requirement .

Series product have the innovated aluminum rail,D-module,clamps and legs which can be pre-assembly to make the installation easy and quick for saving your labor cost and time .besides,the customized length of rail will not require onsite weld and cut,keeping the appearance entirety , structural strength and anti-corrosive performance.



 9-1



Information



Install SiteLow profle roof or open field
Tilt Angle10deg - 60deg
Building Heighup to 20m
Max Wind  speed up to 60m/s
Max Snow Loadup to1.4KN/m2
StandardsAS/NZS 1170 & TUV & Other
MaterialAluminum alloy Stainless steel
ColorNatural
Anti-corrosiveAnodized
WarrantyTen years warranty
DurationMore than 20 years

Front Leg



Rear Leg



10-5

Application



 可调节7778566


可调三角45454






Advantage



1.Easy Installation.

The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2.Great Flexbilitity.
The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.

3.High Accuracy.
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4.Maximum Lifespan.
All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

5.Guaranteed Durability.
Wanhos Solar provides a guarantee of 10 years on the durability of all components used.



easy installation solar system





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.









 Certification

easy installation solar system





Workshop

easy installation solar system





easy installation solar systemeasy installation solar system





Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.





easy installation solar system
