solar panel roof mounting solar mounting brackets
1.Easy Installation.
The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.
2.Great Flexbilitity.
The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.
3.High Accuracy.
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.
4.Maximum Lifespan:
All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable
(1) Overview of System Components

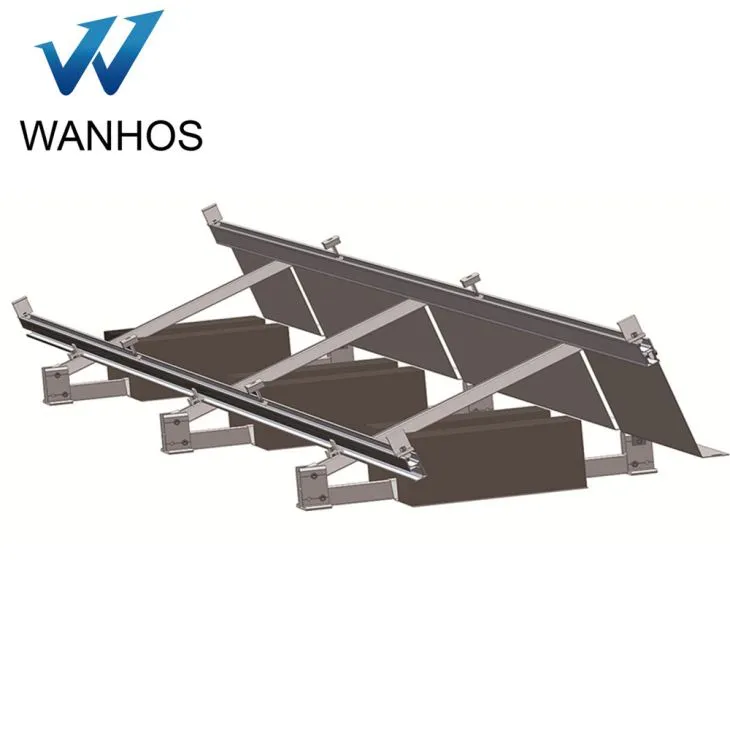

Ballast mounting system | Picture |
Ballat Bracket | ![]() |
Contect Tube | ![]() |
Ballast Pan | ![]() |
Wind Deflection Plate | ![]() |
Bottom Frame Clamp | ![]() |
SR-Rail | ![]() |
Inter Clamp | ![]() |
(2)Technical Information
Products Series | Flat roof solar mounting system |
Install Site | Low profile roof or open field |
Tilt Angle | 5-30deg |
Building Height | up to 20m |
Max Wind Speed | up to 60m/s |
Snow Load | up to 1.4KN/m^2 |
Standards | AS/NZS 1170 & DIN 1055 & Other |
Meterial | Aluminum alloy & Stainless steel |
Color | Natural |
Anti-corrosive | Anodized |
Warranty | Ten years warranty |
Duration | More than 20 years |
(3)Project for Solar Panel Bracket
![]() | ![]() |
![]() | ![]() |
(4 )Packing & Shipping
![]() |
![]() |
