Roof Racking System Solar Mounting Rail Profile

Roof Racking System Solar Mounting Rail Profile

Roof racking system solar mounting rail profile SR-Rail and its accessories can be installed with the most solar panel on the difference condition,Flexibility and compatible are the prominent selling point of the rail profile made by Wanhos! D-module can be put into SR-rail from any position,So...

Product Details

_01



_03

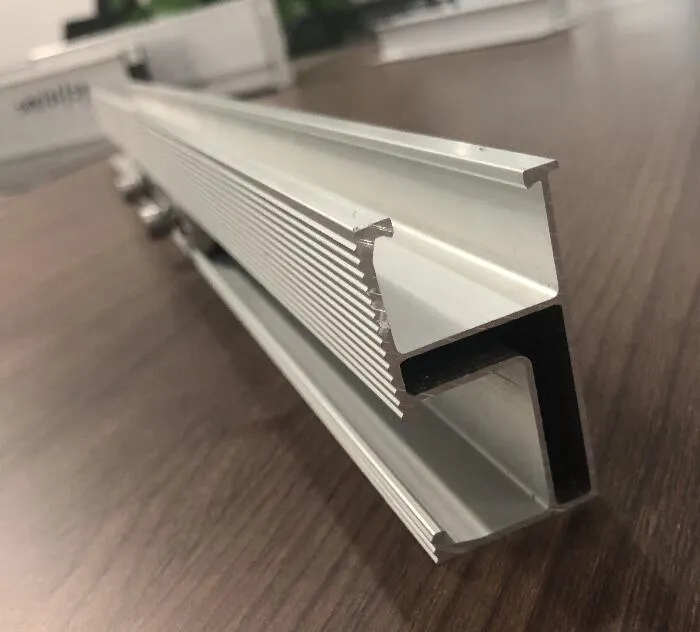

Roof racking system solar mounting rail profile



Wanhos roofing mounting rail profile

Material:Aluminum6005-T5

Color:Natural & Black

Standards:ASNZS1170 & TUV & SGS

Anti-corrosive:Anodized








SR-Rail and its accessories can be installed with the most solar panel on the difference condition,Flexibility and compatible are the prominent selling point of the rail profile made by Wanhos!






D-module can be put into SR-rail from any position,So the parts can be pre-assembly on factory to save your installation time on site.


rail splice.jpg
rail splice1.jpg


SR-rail splice kits can be locked into the groove of the rail profile , and the connecting rail is connected one by one to extend the length of the  rail profile.


TIM图片20190430101517


1.Easy Installation.

   The innovative products have greatly simplified the installation of PV modules.The system can be installed with a single Hexagon Key and standard tool kit.The system is aided by a very high level of pressembly.The T-screw module and unique rail extension method allow greatly reduced installation times.


2.Great Flexbilitity.

    With the Wanhos Solar,frammed photovoltaic modules can be easily mounted on pitched roofs.Our system has mounting accessories designed for use on almost every roof cladding available.



3.High Accuracy.

     Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.



4.Excellent Adaptability.

   The height adjustment of the rails from Wanhos allows a level PV array to be established,no matter how uneven the roof.Wanhos is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.



5.Maximum Lifespan.

   All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.Wanhos provides a guarantee of 10 years on the durability of all components used.



 封面6




Packing

TIM图片20190430102233.jpgRail Packing

Kits Packing



_16





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.









 Certification






Workshop






_20_21





Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.







Hot Tags: roof racking system solar mounting rail profile, suppliers China, manufacturers, factory, customized, buy, price, pricelist, quotation, free sample
SR-Rail and its accessories can be installed with the most solar panels on difference condition.
