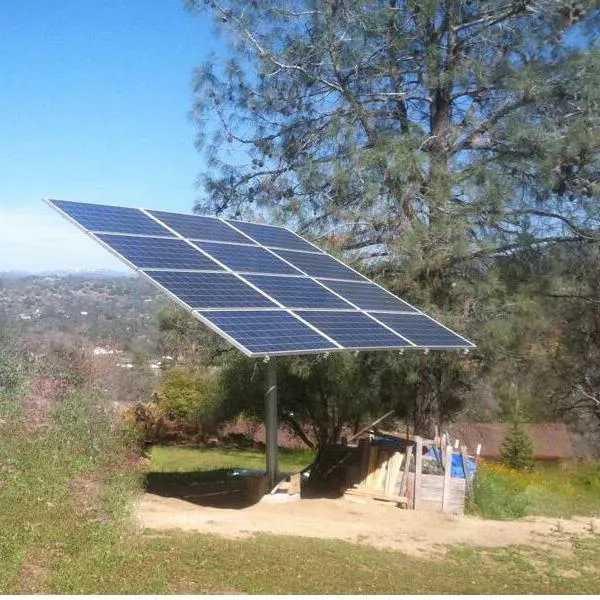

solar energy pump system pole mouting stucture

Pole Mounting System is designed to install solar panels on a single pole . According to different conditions , several kinds of solutions are available.Wanhos Solar Pole Mounting System takes the importance of safety and duration . The systems have been calculated compatible with the structural machines and tested strictly . Materials used include galvanized steel and anodized aluminum , with great anti-corrosion suitable for outdoor using.


KB19-solar-pump-system




WPM02-01

Material : Hot galvanized steel Q235

High integrated to reduce the bolt

Installation area of moudles : up to 3.2㎡

(wind speed<45m/s)

  Foundation : Concrete with pre-buried bolt



WPM06-01

Material : Hot galvanized steel Q235

High integrated to reduce the bolt

Installation area of moudles : up to8.3㎡

(wind speed<45m/s)

  Foundation : Concrete with pre-buried bolt



WPM08-01


Material : Hot galvanized steel Q235

High integrated to reduce the bolt

Installation area of moudles : up to11.5㎡

(wind speed<45m/s)

  Foundation : Concrete with pre-buried bolt



单级444


单级555223

Install siteOpen ground
Tilt Angle10~60deg
System Height<5m
Max Wind Speed<60m/s
Snow Load<1.4KN/m2
StandardAS/NZS 1170 and other international Standards
MaterialHigh Class Aluminum alloy Al6005-T5& Stainless steel SUS304 & Hot galvanized steel
ColorNatural or optional
AnticorrosiveAnodized & Hot galvanized
WarrantyTen years warranty and twenty years service life


单级77744

_16





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.



 Certification




Workshop






_20_21





Necessary info. for us to design and quote

&bull; What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
&bull; How many panel are you going to mount? _______Nos.
&bull; What's the tilt angle?____degree
&bull; What is your planned pv assmebly block? ________Nos. in a row
&bull; How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
