High Safety Factor Solar Array Grounding System

High Safety Factor Solar Array Grounding System

Grounding product can be used to bond solar modules to the aluminum rails and the aluminum rails to ground , so that the entire solar system is grounded and safe : Grounding products include the stainless steel grounding clip and aluminum grounding lug,which are all designed to comply with the requirement of AS5033 , UL467 for bonding or grounding systems.

Product Details


Product Intorduction

Grounding product can be used to bond solar modules to the aluminum rails and the aluminum rails to ground , so that the entire solar system is grounded and safe : Grounding products include the stainless steel grounding clip and aluminum grounding lug,which are all designed to comply with the requirement of AS5033 , UL467 for bonding or grounding systems.

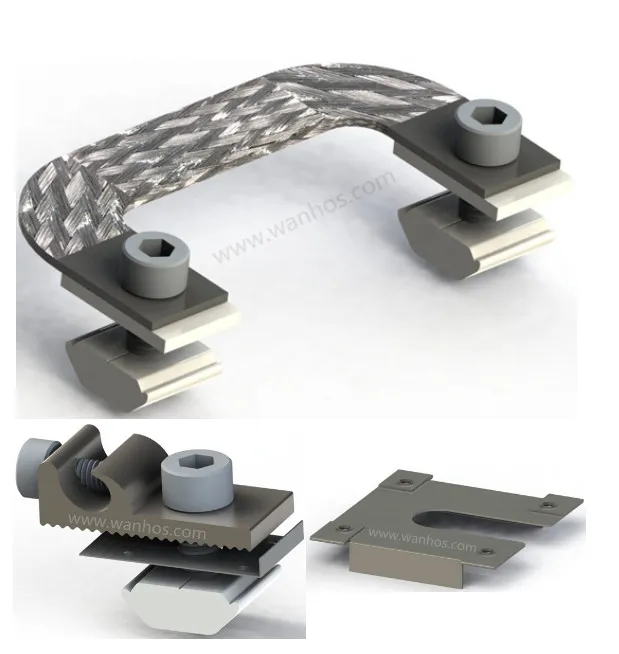

Product Details


Electrically connect spliced Rails

Braided Copper Wire




Ribs will penestrate module and rail andonization

and create grounding path through rail

Product Advantage

1.Easy Installation.

   The innovative products have greatly simplified the installation of PV modules.The system can be installed with a single Hexagon Key and standard tool kit.The system is aided by a very high level of pressembly.The T-screw module and unique rail extension method allow greatly reduced installation times.

2.Great Flexbilitity.

    With the Wanhos Solar,frammed photovoltaic modules can be easily mounted on pitched roofs.Our system has mounting accessories designed for use on almost every roof cladding available.

3.High Accuracy.

    Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4.Excellent Adaptability.

     The height adjustment of the rails from Wanhos allows a level PV array to be established,no matter how uneven the roof.Wanhos is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.

5.Maximum Lifespan.

     All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.Wanhos provides a guarantee of 10 years on the durability of all components used.

Quality Control



Our Campany

Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.
