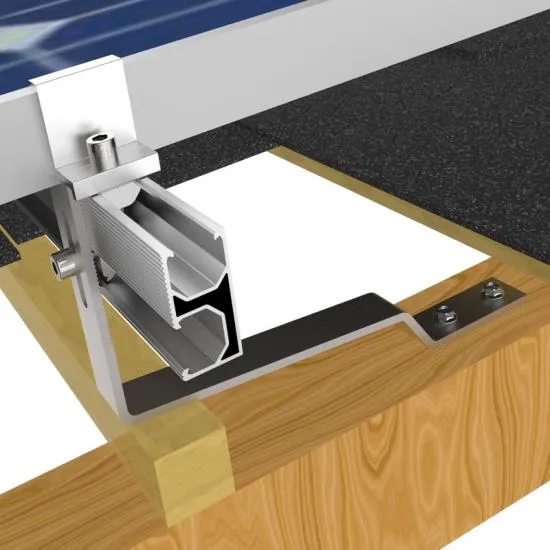

Flat Metal Roof Hook Stand For Solar Panel

Flat Metal Roof Hook Stand For Solar Panel

Flat Roof Solar Panel Mounting System is a highly engineered solution that secures the array without damaging the flat roof. It is compatible with the usual framed modules and typically does not require roof penetrations. Pre-assembled and pre-cut to prevent corrosion and save your installation time and labor cost.

Product Details

   solar racking



Flat Tile roof Stainless Steel Hook for Solar Mounting Bracket


   1.Product Intorduction

Flat Roof Solar Panel Mounting System is a highly engineered solution that secures the array without damaging the flat roof. It is compatible with the usual framed modules and typically does not require roof penetrations. Pre-assembled and pre-cut to prevent corrosion and save your installation time and labor cost.



2.Product Parameter


Install Site

Low profile roof and open field

Tilt Angle

5, 10, 15 and 20 degrees

Building Height

Up to 20 meter

Max Wind Speed

Up to 60 m/s

Snow Load

Up to 1.4KN/m2

Standards

AS/NZS 1170 & TUV & Others

Material

Aluminum Alloy & Stainless Steel

Color

Natural

Anti-corrosive

Anodized

Warranty

10 years warranty

Duration

More than 20 years




3.Product Details



WIK-02



WIK-02-A






               WIK-02-B





4.Product Feature


1.Non-Penetrating to rafters

2.Easy installation. The parts would be pre-assembled on factory to save your install time on site.

3.Rail-less.

4.Light, sturdy material for a cost-efficient system.








   5.Product Application






6.Quality Control



certificate

Solar solar Quality Control



Our Campany



        china solar  bracket companychina solar  bracket company


china solar  bracket factory












         china solar  bracket factory


7.Necessary info. for us to design and quote


• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
