| Installation site: Open Field | |
| Color: Silvery | |
| Wind Load: Up to 80m/s | |
| Snow Load: Up to 1.4KN/m2 | |
PV Modules: Frame or Frameless | |
| Module Orientation: Portrait or Landscape | |
| Standards: AS/NZS1170 | |
| Materials: Aluminum 6005-T5 | |
| Anti-Corrosive: Anodized | |
| Warranty: 10 years | |
| Duration: Over 20 years | |
| Foundation Concrete, Ground Screw, Pile, Pole |
Concrete Based Solar PV mounting system structure using ground screw post anchor

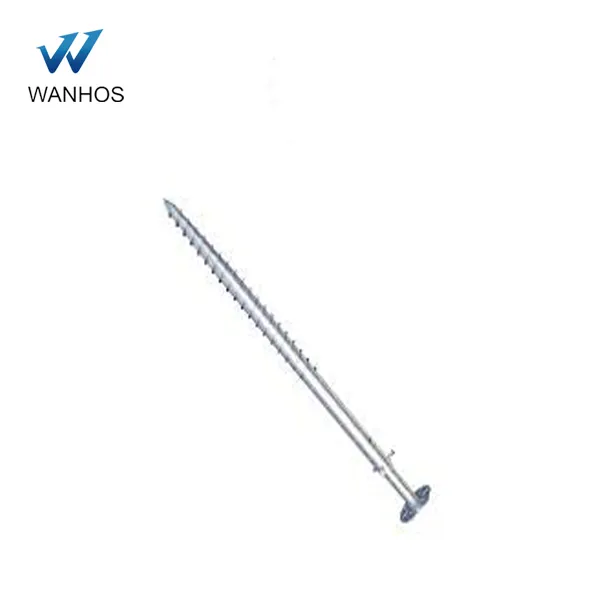

Ground Screw Solar PV mounting system structure using ground screw post anchor
Pile Solar PV mounting system structure using ground screw post anchor
Pole Solar PV mounting system structure using ground screw post anchor
Xiamen Wanhos Solar Technology Co., Ltd. is a high-tech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the high quality, recyclable, steady, trustable and cost-efficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the popular products have been sold installed in more than 100 countries and regions since it established.
Certificates for Solar PV mounting system structure using ground screw post anchor
Why choose us ?
1, Easy & Fast Installation
2, Flexible post spacing withstands different wind & snow loads.
3, High quality material in Aluminium 6005-T5, Galvanized Steel and SUS 304.
4, Mechanical calculation and reliability tested to ensure highest product quality.
5, 10 years system and structural guarantee
Factory for Solar PV mounting system structure using ground screw post anchor
Project Show for Solar PV mounting system structure using ground screw post anchor
As for peferect design, would you kindly help me confirm the design message as follow:
1.Panel Dimension: Length*Width*Thickness
2.Panel Layout: 2×N or 4×N ?
3.Tilt Angle: deg ?
4.Ground Clearance to Module Bottom: mm ?
5.Max Wind Speed: KM/H ?
6.Snow Load: KN/M2 ? Solar PV mounting system structure using ground screw post anchor r t
