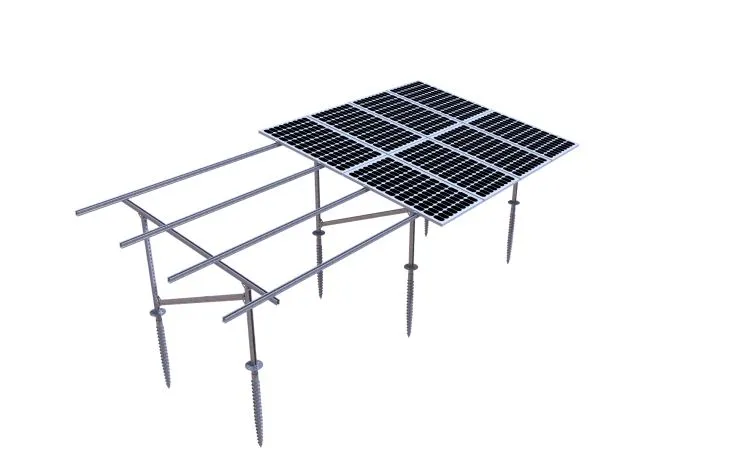

Solar Panel Ground Mounting Frames
------ 100% Gavanized Steel System
Concrete Foundation |
Ground Screw Foundation |
Introduce
Gavanized Steel System is applicable for PV array system on the open fields.The steadiness and safty of this system is with the structural machines and construction acts.
For different foundation solutions for solar panel ground mounting frames, such as concreat with pre-buried bolt, direct buried and ground screw, the system can be modified to install. Material used include galvanized steel and anodized aluminum, with great anti-corrosive suitable for outdoor using.
Components 1. Main beam 2. rail 3. rail splice kit 4. Front leg & back leg + base (other option : weld together) 5. Splice kit 6. mid & end clamps 7. Ground screw 8. angle steel |
Benefits
1. Easy Installation: Planning and machining in factory to save your time and costs.
2. Safty: Design and check the structure according to structural machines and installation acts.
3. Excellent Duration: For outdoor using, all the material selected with high class anti-corrosive protection.
4. Great Flexibility: The ground array can be planned from kilo-watt to megawatt.
Packing: all in steel pallets
Pre-assemble (main beam & support beam) |
Galvanized steel rail |
Ground Screw |
Shipping: loading into container
Xiamen Wanhos Solar Technology CO., Ltd is a high-tech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent services.
Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and cost-efficient solar PV mounting system solutions.
As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than 100 countries and regions since it established. |
