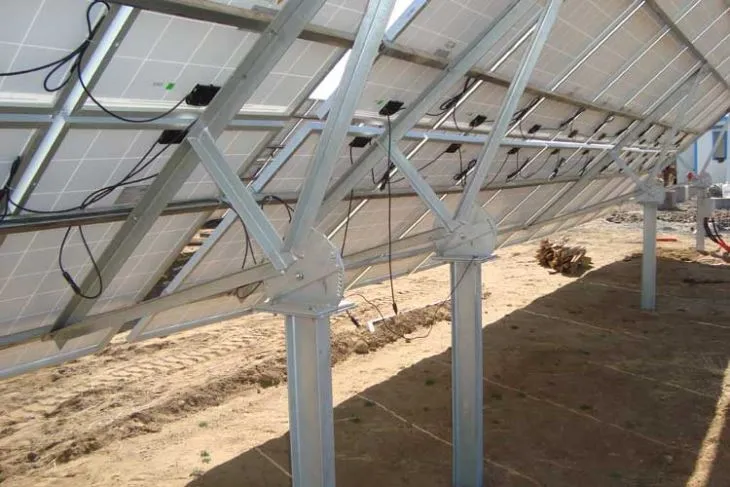

Solar Module Pile Mounting Structure

Solar Module Pile Mounting Structure

Product Intorduction Product Benifits Easy Installation D-module can be put into ER Rail from any position So the parts can be pre-assembled on factory to save your install time on site. Safety and Reliability Check and test the structure strictly to against the extreme weather condition....









 Product Intorduction



Pile ground system is applied for large commercial and utility PV systems on non-sandy ground , suitable for both framed and frameless module installation.
In pile ground system , open post can be piled into round 1-2 meters by pile machine quickly , then easily mounting the pre-assembled Al-beam structure , ER rail with clamps.





Product Benifits



Easy Installation

D-module can be put into ER Rail from any position So the parts can be pre-assembled on factory to save your install time on site.



Safety and Reliability

Check and test the structure strictly to against the extreme weather condition.



Flexibility and Compatible

Smart design reduce the difficulty of the installation on the most condition.



10 Years Warranty

Provides a 10-years warranty for the material and structure.







 Product Information













Installation site

Open Field
Max wind speed  up to 60m/s
Max snow load

up to 1.4KN/m²
Moudle type

Framed or framless
Moudle orientation

Portrait
Rail material Anodized aluminum
Post material Hot-dip galvanized steel
Post height deviation

10mm
Post angle deviation 2°
Post verticality deviation 2°
Pile driving depth 1000-2000mm











Product Application















d alone solar power systems.solar panel accessories





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.



 Certification



Workshop









Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
