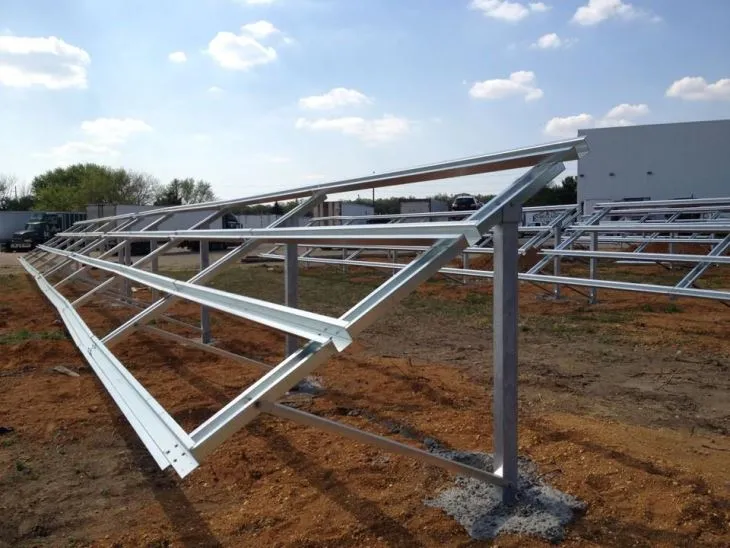

Ground Solar Rack Pile Aluminum System

Ground Solar Rack Pile Aluminum System

Easy Installation D-module can be put into ER Rail from any position So the parts can be pre-assembled on factory to save your install time on site. Safety and Reliability Check and test the structure strictly to against the extreme weather condition. Flexibility and Compatible Smart design...









High quality Aluminum solar  Mounting structure



Pile ground system is applied for large commercial and utility PV systems on non-sandy ground , suitable for both framed and frameless module installation.
In pile ground system , open post can be piled into round 1-2 meters by pile machine quickly , then easily mounting the pre-assembled Al-beam structure , ER rail with clamps.



lnstall Site  Open Field
Tilt Angle 10deg-60deg
Building Height Up to 20m
Max Wind Speed Up to 60m/s
Snow Load Up to1.4KN/m2
Standards AS/NZS 1170 & DIN 1055 & Other
Material Galvanized Steel & Stainless steel
Color Natural
Anti-corrosive Anodized and Galvanized
Warranty Ten years warranty
Duratiom More than 20 years



Easy Installation

D-module can be put into ER Rail from any position So the parts can be pre-assembled on factory to save your install time on site.

Safety and Reliability

Check and test the structure strictly to against the extreme weather condition.

Flexibility and Compatible

Smart design reduce the difficulty of the installation on the most condition.

10 Years Warranty

Provides a 10-years warranty for the material and structure.













d alone solar power systems.solar panel accessories





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.



 Certification

Workshop









Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
