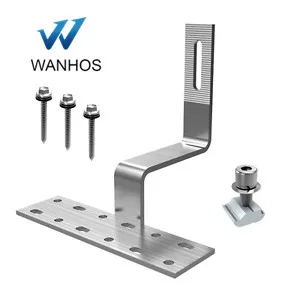

Flexibility Solar Panel Roof Mounting Systems

Flexibility Solar Panel Roof Mounting Systems

The Wanhos Solar Roof Inclined Mount System offers great flexibility in the design and planning of commercial or residential rooftop solar systems. The unique aluminum extrusion guide makes installation quick and easy, saving you labor costs and installation time. The custom length eliminates the need for on-site welding and cutting, ensuring high corrosion resistance, structural strength and aesthetics from the factory to the installation site.







 Product intorduction

-The pitched roof mounting system is designed by experienced engineers in accordance with AS / NZS 1170 and other international standards.

-Roof Mounting System is suitable for use on a variety of general purpose framed solar panels.

-All structural parts are high strength stainless steel and anodized aluminum alloy.







Product Feature&Application

Easy to install.

The diagonal mountings can be loaded from any position on the aluminum extrusion rail and pre-loaded with the clamps and hooks to minimize installation time and cost.

High durability.

Designed with a 20-year service life and 10 years of quality assurance.

Withstand extreme weather.

International standards are designed to withstand extreme weather conditions. The main force-bearing parts of the system have undergone various tests to ensure their structural carrying capacity.

Wide applicability.

Suitable for all kinds of general-purpose framed solar panels in the existing market, ranging from small solar systems to large and even several megawatt systems.




 Product Specification





Item No

Description

 Weather Condition Dimension(mm)
WIK-01

Stainless Steel Hook 1# Kit

 Normal 101mm*46mm*5mm
WIK-03

Stainless Steel Hook 3# Kit

 Normal 101mm*46mm*5mm
WIK-06 Stainless Steel Hook 6# Kit Normal 101mm*46mm*5mm
WIK-09 Stainless Steel Hook 9# Kit Heavy Snow Load 101mm*46mm*8mm
WIK-10 Stainless Steel Hook 10# Kit Normal 101mm*46mm*5mm
WIK-12

Ad Stainless Steel Hook 12#

Kit

 Normal 101mm*38-50mm*5mm
WIK-14 Stainless Steel Hook 14# Kit Normal 101mm*--mm*5mm





Customized PV Solar Panel Mounting Systems / Aluminum Solar Module Racking Support free sample and its quotation and pricelist consultation, China Pile Ground Mounting System manufacturers and suppliers,Welcome to buy our products.







Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.



 Certification



Workshop









Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
