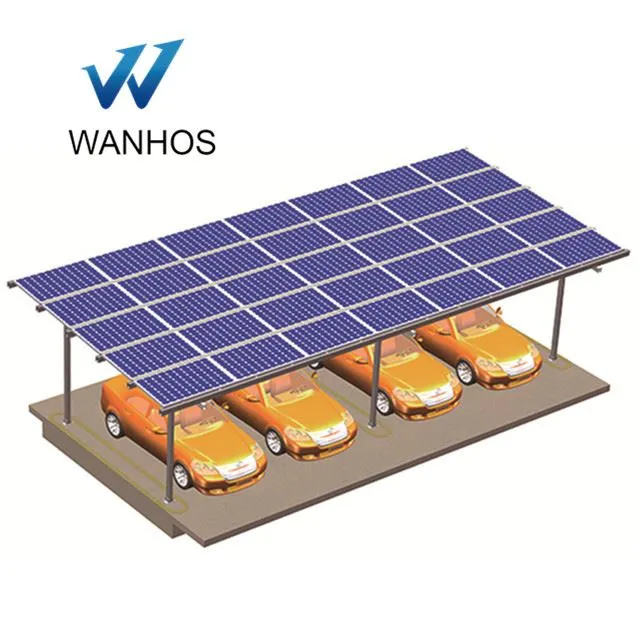

solar panel car shed roof bracket
1.Specification of Carport Solar Power Mounting Brackets
| Material | AL 6005-T5/SUS304/Q235B |
| Surface Treatment | Average Anodizing Coating Thickness≥ 12μm Average Hot-galvanized Coating Thickness≥ 65μm |
Panel Type | Framed & Frameless |
| Wind Load | ≤60m/s |
| Snow Load | 1.4KN/m2 |
| Panel Orientation | Landscape/Portrait |
| Tilt Angle | 0°~60° |
| Seismic Load | Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1 |
| Standards | JIS C 8955 : 2017 AS/NZS 1170 DIN1055 ASCE/SEI 7-05 International Building Code: IBC 2009 |
| Warranty | 15years quality warranty, 25years life span warranty |
2.Case show of solar carport mounting brackets
3.Component list of solar carport mounting system
| Item | Part number | Part Name |
| 1 | WCP-R01 | Rail |
| 2 | WCP-IC-40 | Waterproof mid clamp |
| 3 | WCP-P | Support pole |
| 4 | WCP-BC | H connector |
| 5 | WCP-P | Support beam |
| 6 | WCP-D-01 | Base |
| 7 | WCP-C | Rail fastener |
| 8 | WCP-IB01 | Main beam |
| 9 | WIC-F40-H | End clamp |
| 10 | WRS-01 | Water-proof tape |
| 11 | WCP-SP01 | Rail connector |
4.Our Feature
--Easy installation & Maintenance
--Affordable Competitively priced
--High quality & Best Service
--Professional Engineering Support
--Valued-added
5.Our detail
1. Competence
We serve more than 500 clients and our mounting system has already been installed around the world especially in Japan and Australia. 4GW projects implemented since 2009.
2. Wide Applicability
Design of the mounting system is based on the international standards that can fit for all kinds of solar module types in the world.
3. Manufacture
We apply the high strength aluminum alloy 6005-T5 to ensure the mounting system durable and in supreme quality. High capacity and fluent production line makes it possible to mass manufacture. Month capacity is up to 120MW-150MW; for project less than 5MW, the system can be shipped out within two weeks.
4. Best Value for Money
We offer one stop business from design, manufacture to sell; this lowers the cost of our product and makes our price competitive compared with other brands in the same quality.
5. Shipment
We are in a seaport city and can deliver the mounting system to almost any corner in the world upon request.
If you have never had the chance to install and test the WANHOS framing system, reach out for me for further information, pricing & sample!
Powered by innovative capability since its foundation in 2014, XIAMEN WANHOS TECHNOLOGY CO.,LTD has been focusing on manufacturing and R&D of superior solar photovoltaic products. Our solar PV solutions has meet the requirements and needs of residential,corporate, government and utility scale application worldwide. Our products including solar ground mounting system,roof mounting systems,farmland mounting systems, carport systems, components , ground screws, fence and weed mat. |
Certification
Workshop
