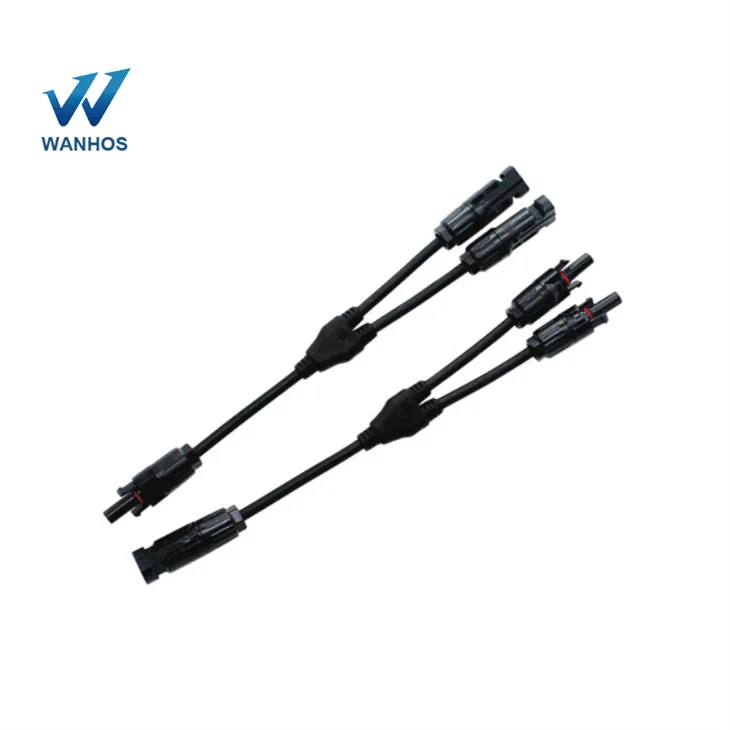

Solar Energy Systems Power Cable

Model

MC4 Male/Female Connector

Y Branch MC4 Connector

Y3 (3 to 1 Y Branch)

Y5(5 to 1 Y Branch)

Rated Current

≤30 A

≤30 A

≤40 A

≤30 A

Rated Voltage

≤DC1000 V

≤DC1000 V

≤DC1000 V

≤DC1000 V

Temperature Range

-40℃~125℃

-40℃~125℃

-40℃~110℃

-40℃~110℃

Contact Material

Copper Tin Plating

Copper Tin Plating

Copper Tin Plating

Copper Tin Plating

Insulation Material

PPO

PPO

PPO

PPO

Withdrawal Force

≥89 N

≥50 N

≥50 N

≥50 N

Insertion Force

≤60 N

≤50 N

≤50 N

≤50 N

Waterproof Degree

IP67

IP67

IP67

IP65

Safe Class

CATIII/2

CATIII/2

CATIII/2

CATIII/2

Flame Class

UL94-V0

UL94-V0

UL94-V0

UL94-V0

Suitable Cable

2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10)

2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10)

2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10)

2.5 mm², 4 mm², 6 mm² (AWG14, AWG12, AWG10)
