Trapezoidal Metal Sheet Solar Mounting

Trapezoidal Metal Sheet Solar Mounting

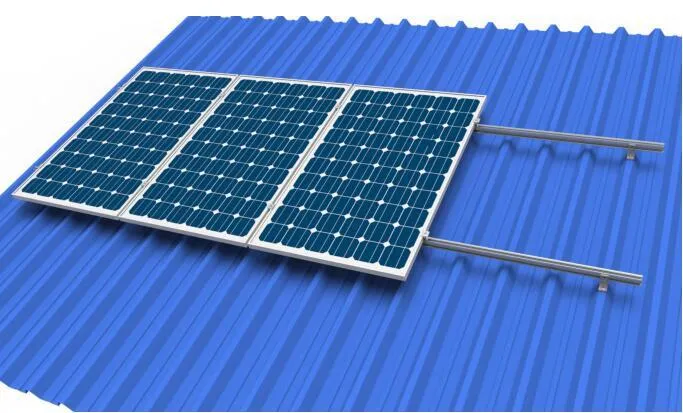

This Wanhos Trapezoidal Metal Sheet Solar Mounting is designed for trapezoid metal roofs allowing it to be fixed directly to the purlin, providing a strong and robust solution.

Product Details

Trapezoidal Metal Sheet Solar Mounting



Trapezoidal Metal Sheet Solar MountingTrapezoidal Metal Sheet Solar Mounting


With variaty of Metal roof brackets,Wanhos Trapezoidal Metal Sheet Solar Mounting can meet trapezoid/corrugated metal roof and standing seam roof demand with or without penetrating on the roof.Wanhos has the excellent engineering team and quality management system to provide the perfect service.


Trapezoidal Metal Sheet Solar Mounting

WHS-WIK-07-A


Trapezoidal Metal Sheet Solar Mounting

WHS-WIK-07-A




Specification of Trapezoidal Metal Sheet Solar Mounting


Trapezoidal Metal Sheet Solar Mounting


 This Wanhos Trapezoidal Metal Sheet Solar Mounting  is designed for trapezoid metal roofs allowing it to be fixed directly to the purlin, providing a strong and robust solution!



Trapezoidal Metal Sheet Solar Mounting Technical information


Installation Site Metal Roof
MaterialSUS304
Anti-corrosiveAntirust
Max wind speedUp to 60m/s
Max snow loadUp to 1.4 KN/㎡
StandardsAS/NZS1170 & SGS & TUV & DIN
Color Natural
Building heightUp to 20m
Tile angleUp to 60 degree
Warranty10 years




Trapezoidal Metal Sheet Solar Mounting  Benefits



1.Easy Installation.

   The innovative products have greatly simplified the installation of PV modules.The system can be installed with a single Hexagon Key and standard tool kit.The system is aided by a very high level of pressembly.The T-screw module and unique rail extension method allow greatly reduced installation times.



2.Great Flexbilitity.

   With the Wanhos Solar,frammed photovoltaic modules can be easily mounted on pitched roofs.Our system has mounting accessories designed for use on almost every roof cladding available.



3.High Accuracy.

   Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.



4.Excellent Adaptability.

   The height adjustment of the rails from Wanhos allows a level PV array to be established,no matter how uneven the roof.Wanhos is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.



5.Maximum Lifespan.

   All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.Wanhos provides a guarantee of 10 years on the durability of all components used.


Trapezoidal Metal Sheet Solar Mounting


Trapezoidal Metal Sheet Solar Mounting


Trapezoidal Metal Sheet Solar Mounting


Trapezoidal Metal Sheet Solar Mounting Packing and Shipping


Trapezoidal Metal Sheet Solar Mounting


 Wanhos Packaging: Put Trapezoidal Metal Sheet Solar Mounting into Wanhos standard carton/ wooden pallet/ other customized packages  for pitched roof/ metal roof solar mounting brackets/ solar racking/ solar installation/ solar instruction.

Wanhos Shipping Leadtime: 1-2 weeks for Trapezoidal Metal Sheet Solar Mounting.





Trapezoidal Metal Sheet Solar Mounting





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.








 Certification

Trapezoidal Metal Sheet Solar Mounting

Workshop

solar hook







Trapezoidal Metal Sheet Solar MountingTrapezoidal Metal Sheet Solar Mounting





Necessary info. for us to design and quote

 What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
 How many panel are you going to mount? _______Nos.
 What's the tilt angle?____degree

 What is your planned pv assmebly block? ________Nos. in a row
 How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.





Trapezoidal Metal Sheet Solar Mounting
