Products Description

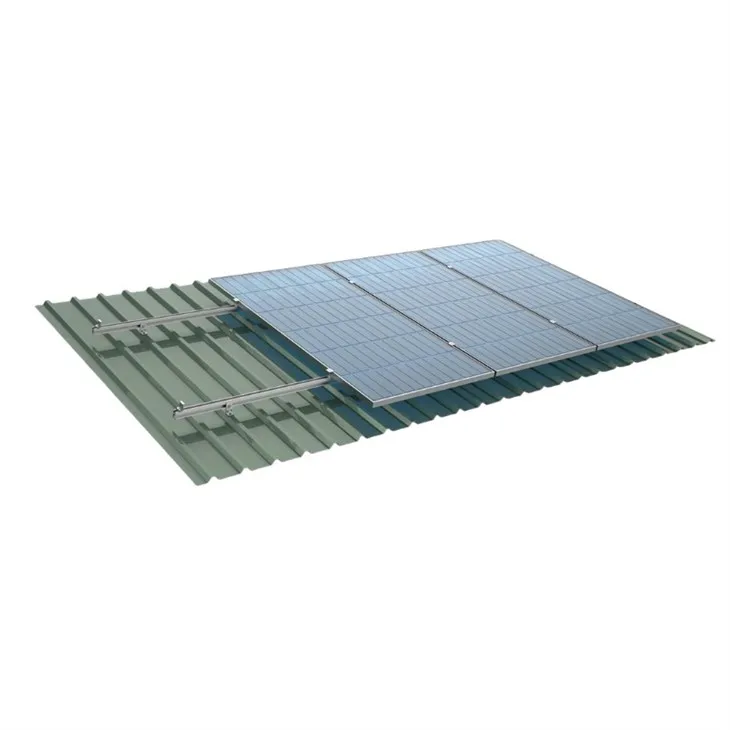

Wanhos Solar's metal roof mounts provide secure, drill-free installation on corrugated, trapezoidal, and standing seam metal roofs. Engineered with AL6005-T5 aluminum rails and SUS304 stainless steel clamps, our systems withstand 60m/s winds while preserving roof integrity. Compatible with all major solar panels (Jinko, Trina, LONGi).
| Parameter | Specification |
|---|---|
| Material | AL6005-T5 rails + SUS304 clamps |
| Max Load | 500kg per mounting point |
| Roof Thickness | 0.4-1.2mm (18-22 gauge) |
| Tilt Range | 10°-40° (5° increments) |
| Certifications | TÜV Rheinland, CE, ISO9001 |
OEM service is available. We promise good quality, easy installation, long warranty for all
customers. Welcome to inquiry us.
Our Payment: T/T, L/C, Paypal, Western Union, Trade Assurance, etc.
Our transportation includes Ocean Shipping, Air Shipping, Express, etc.
Key Features
Zero Roof Penetration:
Patented spring-loaded clamps grip seams without drilling
EPDM rubber pads prevent scratches and leaks
Heavy-Duty Construction:
AL6005-T5 rails (2.5mm thickness, ±0.3mm precision)
SUS304 bolts resist salt/industrial corrosion
Universal Compatibility:
Roof profiles: 25-80mm rib heights
Panel types: Mono/Poly/Bifacial (up to 2.4m length)
Rapid Installation:
Pre-assembled kits: 15 panels/day per crew
Tool-free tilt adjustment (10°-40°)
Necessary info. for us to design and quote
Necessary info. for us to design and quote
1.What is your pv panels dimension?
_____mm Length x_____mm Width x____mm Thickness
2. how many panels will be mounted for the the project?
_______Nos.
3.What is your planned panel layout? (OPTIONAL/RECOMMEND please advise place image and size)
________Nos. in a row × ________Nos. in a column
4.How is weather there, such as wind speed and snow load?
___m/s wind speed and____KN/m2 snow load
5.What is the tilt angle you need?(OR E°/W° )
________degree
6.Do you have any special requirement on ground clearance?
