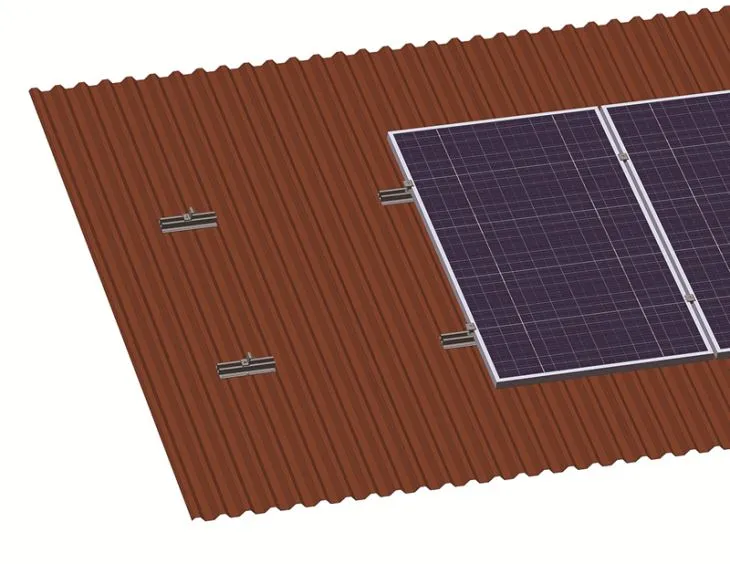

The panels are fixed on trapezoidal roof sheet with short rail and clamps directly. The clever design ensures minimal installation time. Its short length and lightweight can lessen the pressure on the roof sheet. The higher rail improves the heat dissipation and makes it be suitable for the tropical zone.
Mounting structure components include:
Slotted Rails
End and Mid Clamp
Rubber Gasket
Nuts and bolts
Above components are made out of anodized rails riveted to the metal roof with self-drilling screws.
Parameters
Install Site | Trapezoidal Roof |
Material | AL 6005-T5 |
Max. Wind Speed | 60m/s |
Snow Load | 1.4 KN/m2 |
Surface | Anodized |
Color | Natural or Customized |
Module Orientation | Portrait or Landscape |
Applicable Module | Framed, Frameless |
Warranty | 10 years warranty; 25 years service life |
