Matel Steel Roof Solar Aluminum Rail Kits

Matel Steel Roof Solar Aluminum Rail Kits

WANHOS SOLAR mounting bracket
Material:Al6005-T5&SUS304
Install Site:Steel Roof
Warranty:15 years

Product Details

metal roof pv system



metal roof pv system





Matel steel roof solar aluminum rail kits

roof solar aluminum rail







 Introduce



Metal Roofs - Trapezoidal Profile

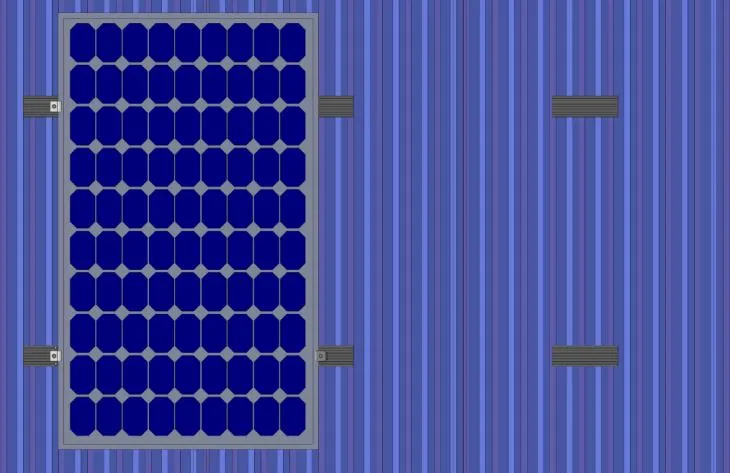

Suitable for corrugated metal roofs with trapezoidal roof profile-solar panels arranged in portrait mode.







 roof solar aluminum rail















Components



1-Slotted rails
2-End and mid clamps
3-Rubber gasket
4-Nuts and bolts
Above components are made out of anodized al rails riveted to metal roof with self-drilling screws



roof solar aluminum rail

Inter clamp & Grongding path


roof solar aluminum rail

End clamp & Ribs




roof solar aluminum rail





Advantage





1.Easy Installation.

   The innovative products have greatly simplified the installation of PV modules.The system can be installed with a single Hexagon Key and standard tool kit.The system is aided by a very high level of pressembly.The T-screw module and unique rail extension method allow greatly reduced installation times.



2.Great Flexbilitity.

   With the Wanhos Solar,frammed photovoltaic modules can be easily mounted on pitched roofs.Our system has mounting accessories designed for use on almost every roof cladding available.



3.High Accuracy.

   Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.



4.Excellent Adaptability.

   The height adjustment of the rails from Wanhos allows a level PV array to be established,no matter how uneven the roof.Wanhos is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.



5.Maximum Lifespan.

   All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.Wanhos provides a guarantee of 10 years on the durability of all components used.







 Application



Suitable for corrugated metal roofs with trapezoidal roof profile-solar panels arranged in portrait mode



roof solar aluminum rail







Customized ballasted mounting system

Racking Support  sample and its quotation and pricelist consultation, China Pile Ground Mounting System manufacturers and suppliers,Welcome to buy our products.







metal roof pv system





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.









 Certification

metal roof pv system





Workshop

metal roof pv system





metal roof pv systemmetal roof pv system





Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.







------------------------------------------------------------------------------------------------------------------------------------------------------------------
