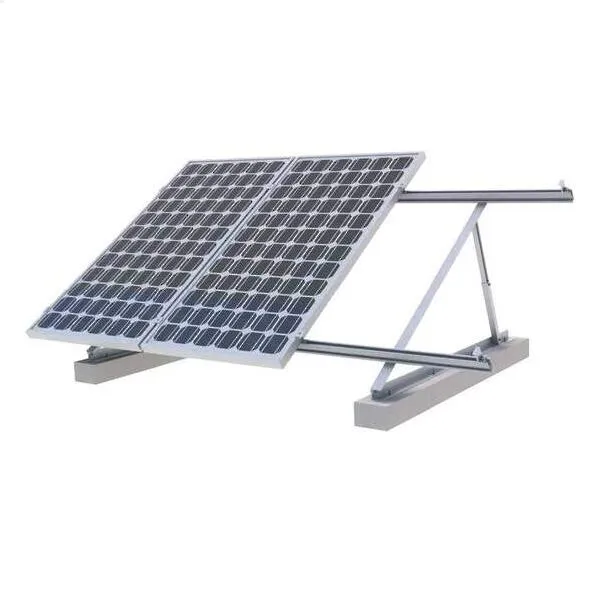

Solar pv flat roof mounting systems
Specification for solar pv flat roof mounting systems
| Install Site: | Low profile roof or open field |
| Tilt Angle: | Fixed 30 deg |
| Building Height: | up to 20m |
| Max wind speed: | up to 60m/s |
| Snow Load: | up to 1.4KN/M2 |
| Standards: | AS/NZS 1170 & TUV & Other |
| Material: | Aluminum alloy & Stainless Steel |
| Color: | Natural |
| Anti-corrosive: | Anodized |
| SR-Rail Length: | Regular 2560mm, 3400mm, 4200mm or other customize size |
Solar pv flat roof mounting systems is develop to mount the module tilt a certain angle on a flat roof or ground. You can have the fixed or adjustable angle solution as 10-15 deg, 15-30 deg and 30-60 deg according to your exact requirement. Series product have the innovated aluminum rail, D-module, clamps and legs which can be pre-assembley to make the installation easy and quick for saving your labour cost and time. Besides, the customized length of rail will not require onsite weld and cut, keeping the appearance entirety, structural strength and anti-corrosive performance.
