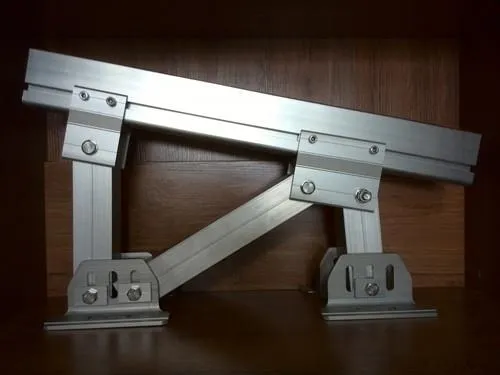

Solar Support Bracket Aluminum Guide Rail China

Solar Support Bracket Aluminum Guide Rail China

Introduce AL-Ground Mounting System is made of 100% aluminum to mount on concrete strip foundation or ground screw. It is featured with lightweigh , strong structure, and recyclable material. Wanhos Solar AL-Ground Mounting System, with pre-assembled Beam, the size of the legs and the B-rail is...

Product Details

_01



_03







 Introduce



AL-Ground Mounting System is made of 100% aluminum to mount on concrete strip foundation or ground screw. It is featured with lightweigh, strong structure, and recyclable material.

Wanhos Solar AL-Ground Mounting System, with pre-assembled Beam, the size of the legs and the B-rail is manufacturing in the factory avoid welding and cut on the spot, saving your time and cost.



 全铝788454121


Installation site

Open Field

Max wind speed up to 60m/s
Max snow load

up to 1.4KN/m²

Moudle type

Framed or framless

Moudle orientation

Portrait

Rail materialAnodized aluminum
Fasten MaterialStainless steel



Foundation

Concrete with pre-buried bolts
Ground Screw




全铝777455



Easy Installation


D-module can be put into ER Rail from any position So the parts can be pre-assembled on factory to save your install time on site.



Safety and Reliability


Check and test the structure strictly to against the extreme weather condition.



Flexibility and Compatible


Smart design reduce the difficulty of the installation on the most condition.



10 Years Warranty


Provides a 10-years warranty for the material and structure.






Customized al ground mounting system

Racking Support free sample and its quotation and pricelist consultation, China Pile Ground Mounting System manufacturers and suppliers,Welcome to buy our products.



_16





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.









 Certification






Workshop






_20_21





Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.







Customized Solar Support Bracket Aluminum Guide Rail China free sample and its quotation and pricelist consultation, China Ground Mounting System manufacturers and suppliers,Welcome to buy our products.
