Solar Aluminum Guide Rail And System

Solar Aluminum Guide Rail And System

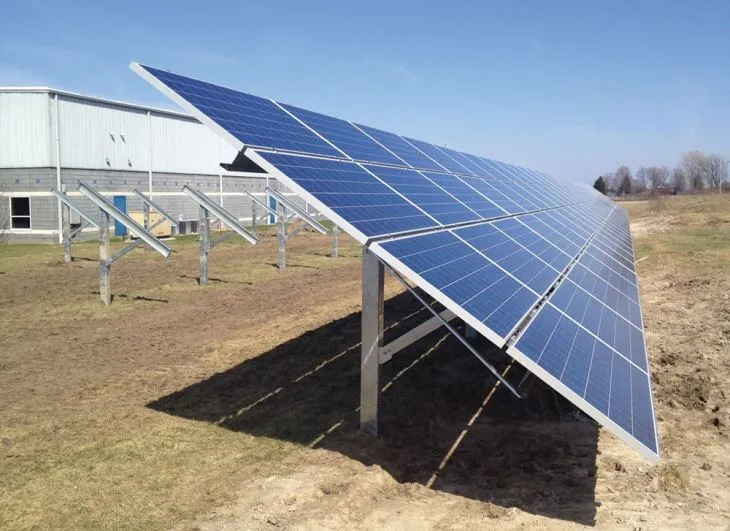

High quality Solar Pile Mounting Brackets is applied for large commercial and utility PV systems on non-sandy ground, suitable for both framed and frameless module installation. In Pile Ground System, Open Post can be pile into the ground 1-2 meters by pile machine quickly, then easily mounting...

Product Details

_01



_03

High quality Solar Pile Mounting Brackets is applied for large commercial and utility PV systems on non-sandy ground, suitable for both framed and frameless module installation.

In Pile Ground System, Open Post can be pile into the ground 1-2 meters by pile machine quickly, then easily mounting the pre-assembled Al-Beam structure, ER Rail with clamps.

Our mission is to simplify your installation and ensure the structure safety. Wanhos Solar, your best choice.


直埋7886





Installation site

Open Field

Max wind speed up to 60m/s
Max snow load

up to 1.4KN/m²

Moudle type

Framed or framless

Moudle orientation

Portrait

Rail materialAnodized aluminum
Post materialHot-dip galvanized steel
Post height deviation

10mm

Post angle deviation
Post verticality deviation



全埋8884521221



Easy Installation


D-module can be put into ER Rail from any position So the parts can be pre-assembled on factory to save your install time on site.



Safety and Reliability


Check and test the structure strictly to against the extreme weather condition.



Flexibility and Compatible


Smart design reduce the difficulty of the installation on the most condition.



10 Years Warranty


Provides a 10-years warranty for the material and structure.




QQ图片20130823183521


QQ图片20130823183818





_16





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.









 Certification






Workshop






_20_21





Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.








Customized Solar Aluminum Guide Rail And System free sample and its quotation and pricelist consultation, China Ground Mounting System manufacturers and suppliers,Welcome to buy our products.
Hot Tags: solar aluminum guide rail and system, suppliers China, manufacturers, factory, customized, buy, price, pricelist, quotation, free sample
