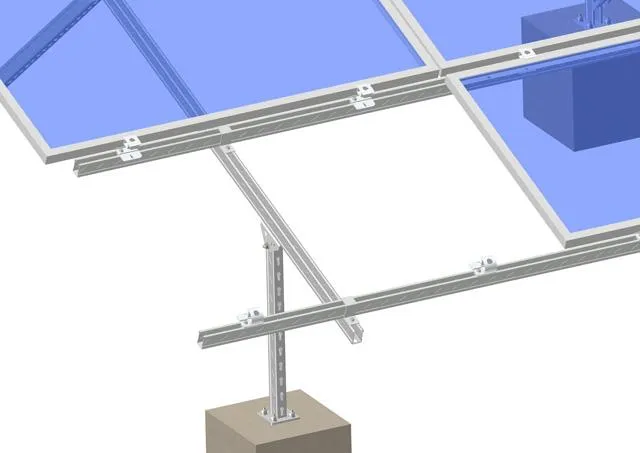

C-steel On Grid Solar Mounting System

C-steel On Grid Solar Mounting System

Product intorduction C-Steel Ground Mounting System is applicable for PV array system on the open fields . The steadiness and safety of this system is with the structural machines and construction acts. For different foundation solutions, such as concreat with pre-buried bolt, direct buried and...

Product Details

_01



_03


 Product intorduction


C-Steel Ground Mounting System is applicable for PV array system on the open fields.The steadiness and safety of this system is with the structural machines and construction acts.



For different foundation solutions, such as concreat with pre-buried bolt, direct buried and ground screw, the system can be modified to install. Material used include galvanized steel and anodized aluminum, with great anti-corrosive suitable for outdoor using.






Product Benifits


Easy Installation

D-module can be put into SR-RAIL from any position.So the parts can be pre-assembled on factory to save your install time on site.

Flexibility and Compatible

SR-RAIL and its accessories can be installed with the most solat panels on the different condition.

Safety and Reliability

The racking systems can stand up to the extreme weather complied with the AS / NZS 1170 and other international structure load standards by skilled engineers . The main support components have also been tested to guarantee its structure and load-carrying capacity.






 Product Information


Installation siteOpen Field
Max Wind Speed up to 60m/s
Max snow loadup to1.4KN/㎡
Tilt Angle10deg - 60deg
StandardsAS/NZS 1170 & TUV & Other
MaterialAnodized aluminum & Galvanized steel
Anti-corrosiveAnodized & galvanized steel



Product Feature





material and finish : Galvanized steel Q235

Foundation : Ground screw


Product Application







_16





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.



 Certification




Workshop






_20_21





Necessary info. for us to design and quote

• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
