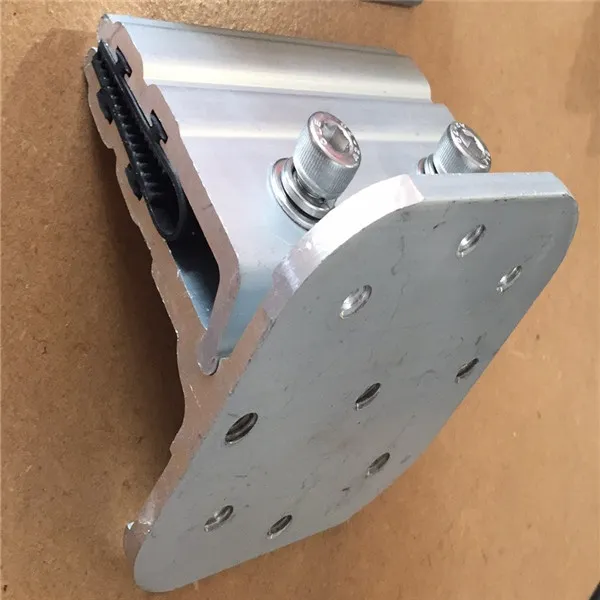

Residential Solar Energy Standing Seam Roof Hook

Residential Solar Energy Standing Seam Roof Hook

1. Non-penetrating design ensures watertightness. 2. Maximum stability with minimum weight. 3. Variable combinations with L-feet, fixed foot or PV module clamp directly. 4. Simple and quick installation achieved by attaching the clamp to the standing seams.

Product Details

 Standing Seam Roof Hooks  are engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system. The various roof hooks can be high pre-assembly and make the installation easy and quick to save your labor cost and time.



Technical Parameters

Installation Site：Pitched Roof
Tilt Angle ：Flushed with the roof ,up to 60 deg
Building Height：20 m
Max Wind Speed：<60m/s
Snow Load：<1.4KN/m2
Standard ：AS/NZS 1170 and other international Standard
Material ：High Class Aluminum alloy Al6005-T5& Stainless steel 304
Color: Natural or Customized
Anticorrosive: anodized aluminum & stainless steel
Warranty：Ten years warranty and twenty years service life

1. Non-penetrating design ensures watertightness.
2. Maximum stability with minimum weight.
3. Variable combinations with L-feet, fixed foot or PV module clamp directly.
4. Simple and quick installation achieved by attaching the clamp to the standing seams.

Customized Residential Solar Energy Standing Seam Roof Hook free sample and its quotation and pricelist consultation, China Components manufacturers and suppliers，Welcome to buy our products.
