Product Details

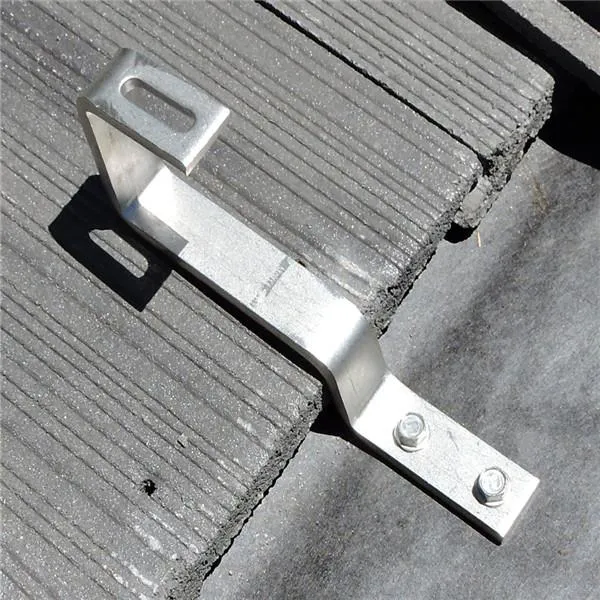

Flat Tile Roof Hook
PlateLengthHoleLong HoleMaterial
30×5 (mm)285 (mm)Ø9 (mm) x 2M811×29 (mm)M10SUS 304
Notifications: included screws M10 A2-70


Various roof hook styles have been developed for different tile roofing types

Compared to hanger bolts:

  • Drilling tile is not required

  • Tiles are not subject to cracking and failure over time due to normal flexure of hanger bolt

Compared to standoffs:

  • Easier to install, do not require cutting tile or flashing in most instances

  • Superior aesthetics


Features

  • Works with plain tile or flat tiles

  • Slotted hole on top of hook gives good adjustability relative to rail

  • Easy to install...


Installation


  • Remove and trim tiles at installation point if necessary

  • If tiles are trimmed, prepare and insert sheet metal flashing (3/4”overlap)

  • Place roof hook in desired position, drive supplied screws into rafter

  • Replace overlying tile


These substantial stainless steel brackets are used to secure the mounting rails to the roof beams. This version is suitable for flat tiles/ Rosemary / peg tiles only, but please browse the other options for pan-tiles and slate roofs.

To fit, a few tiles are removed from the outside of the roof and the hook secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are simply replaced around the hook ensuring a weatherproof finish.
