Wanhos solar technology solar energy aluminum carport with water-proof solar installation system
Wanhos Carport mounting system adopts high-strength AL6005-T5, some components are pre-assembled in factory, so that to reduce larbor costs and construction time on site.
1.Specification of Carport Solar Power Mounting Brackets
| Mount Type | Solar carport mounting brackets |
| Applicable site | Open ground |
| Installation Angle | 5 or 10 or 15 degree |
| Height | 2.0~3.5m |
| Wind load | Up to130mph(60m/s) |
| Snow load | Up to 30psf(1.4KN/m2) |
| Material | Extruded Aluminum |
| Warranty | 10years on material |

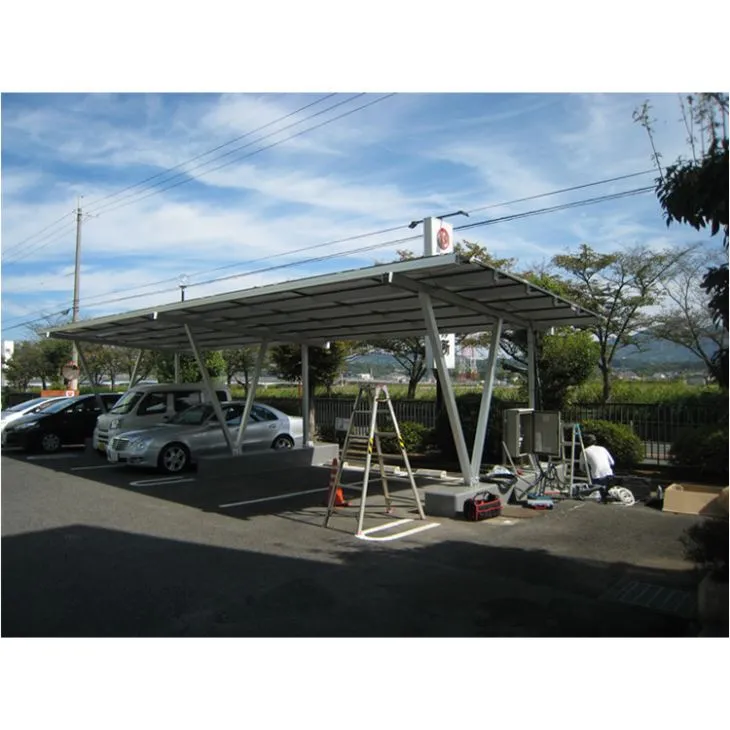

2.Case show of solar carport mounting brackets
3.Component list of solar carport mounting system
| Item | Part number | Part Name |
| 1 | WCP-R01 | Rail |
| 2 | WCP-IC-40 | Waterproof mid clamp |
| 3 | WCP-P | Support pole |
| 4 | WCP-BC | H connector |
| 5 | WCP-P | Support beam |
| 6 | WCP-D-01 | Base |
| 7 | WCP-C | Rail fastener |
| 8 | WCP-IB01 | Main beam |
| 9 | WIC-F40-H | End clamp |
| 10 | WRS-01 | Water-proof tape |
| 11 | WCP-SP01 | Rail connector |
4.Our Feature
① Easy Installation
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.
② Flexible and Stable
The CARPORT, with its fully adjustable design, maximally absorbs the size error caused by the construction, and guarantees the stability and beauty of PV matrix structure.
③High Accuracy of Construction
The use of the corresponding color markers achieves a simple and effective installation guidance that can to much extent replaces installation instruction and reduces the construction error rate.
④Extraordinarily Environment-friendly Performance
All materials can be 100% recycled, and no waste is generated, which fully embodies the concept of energy saving and environmental protection of solar photovoltaic power generating system.
⑤Superb Quality
All raw materials of components are made of aluminum (anodized 6005-T5) and stainless steel (SUS304), which reach the maximum degree of product's weather resistance and the stability of the structure. The CARPORT, through reliable mechanical analysis and static load test, combines the theory and practice-related data to ensure stability and safety performance of the structure.
⑥Range of Application
Inconsideration of various factors like stability and economy of installation, we suggest you choose CARPORT when there quire mentis ground clearance over 0.6m, horizontally less than 3 sections and vertically less than 2 sections.
5.Our detail
If you have never had the chance to install and test the WANHOS framing system, reach out for me for further information, pricing & sample!
|
Certification
Workshop
Necessary info. for us to design and quote • What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
|
