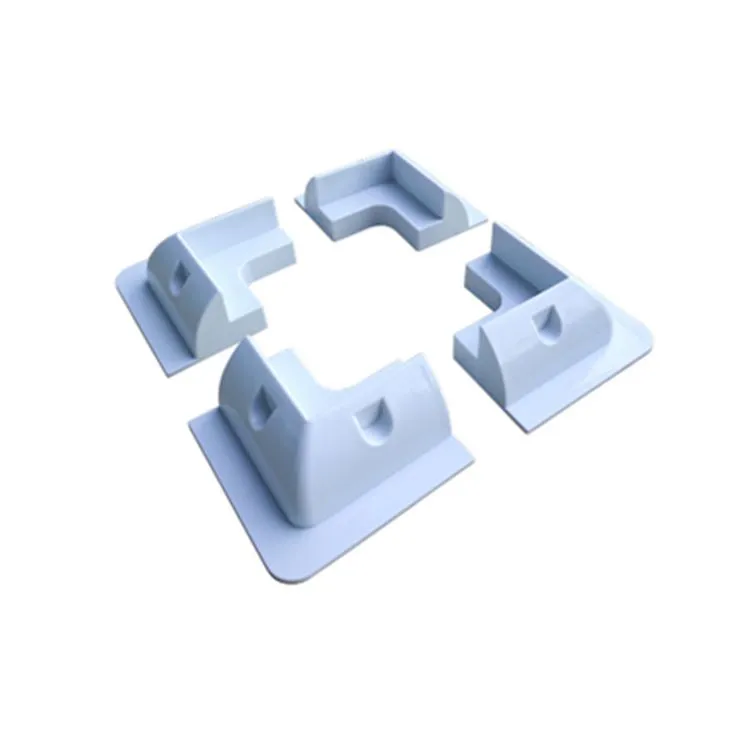

Solar Framed Panels ABS Mount
The ABS solar mounting bracket is an ideal solution for cable entry through roofs. Made from ABS plastic, this waterproof and UV-resistant bracket allows an easy cable entry solution for any condition. With its dual cable entry, this housing easily passes through solar cables for a smooth installation on virtually any roof surface.Wide application in vehicles, caravans, boats, outbuildings etc.
Feature:
1. 100% recyclable and UV resistant.
2. Easier and more flexible installation.
3. Non-corrosive and high quality ABS plastic construction.
4. Designated for virtually any aluminum framed solar panels.
5. Best suitable for flat roofs of aluminum, wood, or GRP material.
Application
1) The solar panel corner brackets can be used with any sized aluminum framed solar panel to provide a secure fixing for vehicles, caravans, boats, outbuildings etc.
2) The solar corner mounts will support the solar panel at the optimum height above the surface to enable aeration from underneath, ensuring the solar panel functions as efficiently as possible.
3) The mounts can be safely bonded to the surface removing the need to drill holes. The mounts also act as a wind deflector and maintain the correct air gap between the solar panel and the roof top / deck.
4) Compatible with 20W to 200W panels.
Features:
1)Automatic recognition of 12V/ 24V system voltages.
2)LED indicators can give a clear and intuitive indication of the operating statuses of the solar panel and load.
3)Two USB outputs are provided with a maximum current of up to 1.2A, making it possible to charge devices such as Iphone, Ipad, Android phones, etc. with a large current.
4)With an LCD screen cyclically displaying information including battery voltage, capacity, charging current, discharging current, load mode, controller temperature, etc., the user can conveniently check needed information at any time.
5)An upgraded 3-stage charging algorithm applies an equalizing charge to the battery every 30 days, effectively preventing the battery from sulfuration, thus extending the battery's service life.
6)The load is operated with an easy-to-use manual switch.
7)A built-in temperature sensor helps to deliver high-precision temperature compensation.
8)Overcharge, over-discharge and overload protection, as well as short-circuit and reverse-polarity protection.
9)TVS lighting protection.
2.Usage Recommendations
1)As the controller will generate heat during operation, it's recommended that it be installed in an environment with good ventilation conditions.
2)The controller will measure the ambient temperature and make compensation to battery charging based on the measurement. As long as actual conditions permit, place the battery and the controller in the same environment.
3)Choose cables with large enough capacity for connection, in case too much loss incurred on the lines causes the controller to misjudge.
4)The controller has a common positive pole inside. If grounding is needed, ground the positive pole.
|
Certification
Workshop
